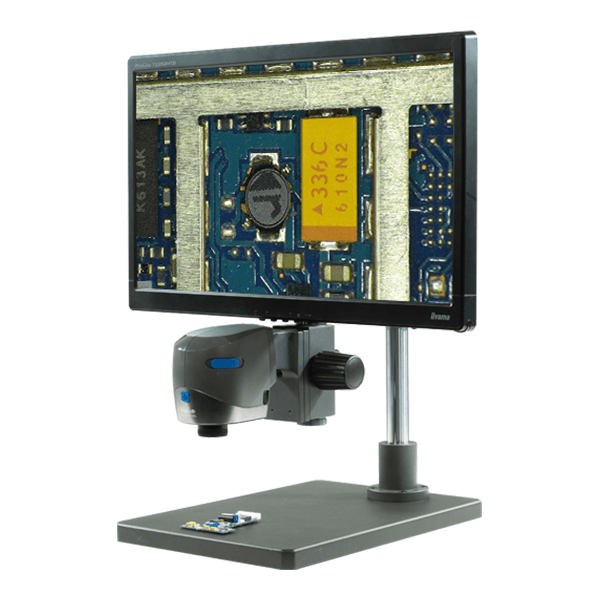

VE CAM 50 - Vision Engineering Compact Digital Inspection System
VE CAM 50 – Compact Digital Inspection System The VE Cam is designed for productivity, with the power, speed and efficiency of digital imagery in a compact package. The VE CAM 50 has a 50mm FOV.
Benefits Of The VE Cam 50:
Digital Working Efficiency – Immediate capture and share capability across your team
Intuitive Technology – Easy to use interface with common functions for simple use
Wireless Viewing – View live images without interrupting workflow, thanks to WiFi mirror imaging - Works with any HDMI monitor
Improved Decision Making – Improve your efficiency, speed your samples, validate your products with the common viewing capability of the VE CAM
Stand Options For VE CAM:
Bench Stand
Compact, high stability and small footprint
Integrated intensity adjustment for overhead and sub-stage lighting
Single Arm Boom Stand
Ideal for larger components
Stable platform with base, or can be attached directly to work surface
Good freedom of movement
No adapter required
Double Arm Boom Stand
For applications requiring greater reach without compromising stability
Easy adjustment for precise positioning and alignment
No adaptor required
Articulated Arm Stand
Extended reach and ultimate flexibility for precise positioning
Other Version Of The VE CAM:
Model
VE CAM 80
Field Of View
80mm
SKU - 560-VE-CAM-80
Magnification Range
6.23x - 31.5x
Working Distance
148mm
View / Buy Here
More Information
General Specifications
Optical Data
Diagonal Field Of View
50mm
Max. Field Of View (HxV)
40x30mm
Min. Magnification (Using 24” Screen)
9.97 x
Min. Field Of View (HxV)
8 x 6
Max. Magnification (Using 24” Screen)
49.9 x
Working Distance
163mm
Maximum Subject Height In Stand
Bench Stand
75mm
Single Arm Stand
119mm
Double Arm Stand With Clamp
262mm
Double Arm Stand With Base
407mm
Articulated Arm Stand
505mm
Interface Options Via USB - Mouse, Keyboard, Touch Screen Compatibility, Keypad, Footswitch
Outputs
Video Out
HDMI
Image Capture Format
JPEG
USB Stick Format
FAT32
Features
WiFi Hotspot - Screen Mirroring
Yes
On Screen Quick Buttons
Yes
Saved Images
Yes
Replay Saved Images
Yes
Pinch Zoom (Mousepad/touchpad)
Yes
Pan & Zoom
Yes
Area Magnifier
Large & Small
Crosshair Colours
8
Grids
Large & Small
Number Of Pre-sets
10
Exposure Options
AE/ME
White Balance Options
One Button
Image Playback
Yes
Menu Languages
9
